FLAT SCREEN

writer：admin source：未知 date：2015-08-29 10:16

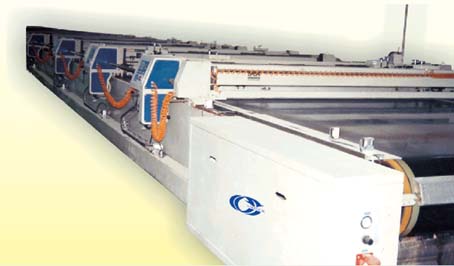

  • Flat screen printing machine is a brand new product independently developed by our company,of accurate printing,advanced technology and reliable stability.

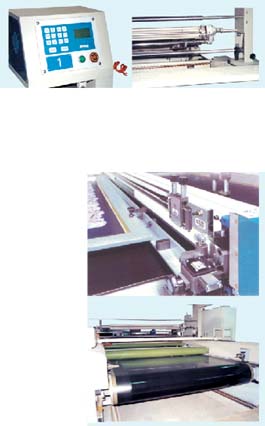

  • Main drive system:Double motors drive,electron control,exact synchronization,high precision of printing.
  • Scraping system:It's the direct printing operating institution and also an important unit for printing quality.
  • Coating system:Gluing roller and cloth pressing-on roller are equipped at the entry in order that fabric sticks on the conveyor belt smoothly and continuously.

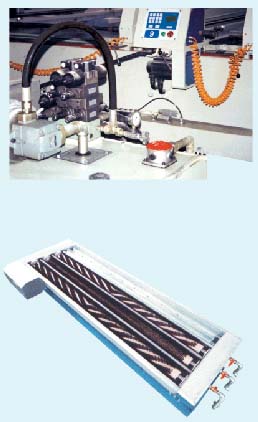

  • Hydraulic drive control system:The system is composed of screw pump,lifting cylinder,pressure valve,directional valve,magnetic valve,speed eeduction valve,filter,oil cooler and pressure garge.
  • Washing Unit:The unit is made up of brush roller,spray pipe,plastic doctor scraper and storage water tank.While working only after you let the button on the panel.on the "left" positionand turn on the brush roller motor,the whole machine runs.

TECHNICAL SPECIFICATIONS

Width Model 1800, Model 2000
Printing width 1600mm, 1800mm
Color set 10sets，12sets，16sets（option by user）
Printing pattern repeat length 500～3000mm
Scraper angle adjustment range 25°
Printing time 1～8 times or continuous scraping、floating scraping
Machine speed 8～20m/min
Drive mode Hydraulic drive and AC frequency conversion
Heat source Steam、Hot oil
Chamber working temperature 120、（steam），150、（hot oil）
Entry & exit mode Continuous cloth feeding and delivering
