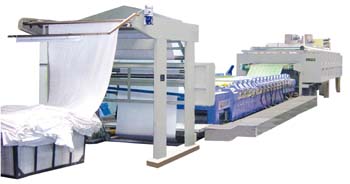

VK601—200MAGNETIC BAR ROATARY SCREEN PRINTING MACHINE

Suit for printing of natural fibres,chemical fibres and their blended woven fibrics and knitted fabrics.

Independent drive of screens,computer control. Magnetic bar scraping. Open screen head.
		Open screen heads fit for 5 kinds of pattern repeat screens: 640、726、820、914、1018.
This kind of doctor knife is more convenient for screen changing.Time is saved and benefit if risen. The main motors are AC frequency conversion motors and are connected directly with the frame.Middle tache is lacked.Design register precision is high.Screen heads are driven by motors indepently.Auto design register is controlled by computer,so perfect register can be achieved.
		Magnetic-bar scraping is adopted.Even coloration and high pulp yield percentage can be achieved.Lift mode is applied for magnetic table.Cylinder is made specifically,of small load rate,which makes the magnetic-table can be up and down more stably.
Touch screen can realize the dialogue between man and machine,carry through date-sending operation and spot management.It processes self-diagnose function,convenient for maintenance.

Width	Model 200	Model 220	Model 240	Model 260	Model 280	Model 300
Printing width	1650～1850mm	1850～2050mm	2050～2250mm	2250～2400mm	2400～2600mm	2600～2800mm

Machine speed

4～80m/min

Printing pattern repeat length

640，726，820，914，1081

Color set

8sets，12sets，16sets

Screen head type

Open screen head

Scraping and printing mode

Bymagnetic bar

Drive mode

Frequency conversion control for the whole unit control system

Design register mode

Longitudinal:automatic design register,no limit of rang

Transverse:hand control design register,maximum range±10mm

diagonal:hand control design register,maximum range±3mm

Machine hand

Left or right hand

Dry mode

Multi-layer hot wind drying

Heat source

Steam or hot oil

Chamber quantity

6 links，8 links，10 links

Chamber working temperature

120℃（steam），150℃（hot oil）

Chamber fabric containing capacity

27.8∽（6 links），36.8∽（8 links），45.8（10 links）

Installed power

120kw(6 links)136kw(8 links)，152kw(10 links)
