TECHNICAL SPECIFICATIONS:

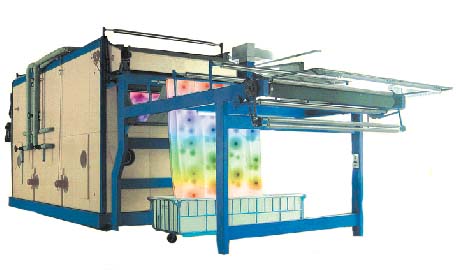

- Model:VK 701
- Machine hand:left or right.
- Guide roller width series:1800～3800mm(increase 200mm for each gear).
- Fabric width series(single-width or double-width)1600～3600mm.
- Cloth containing capacity:140,210,280,350,420,490 meters(capacity of single width and single layer).
- Length of loop:1.25～2.5 meters,adjusting scale:1:2.
- Maximum cloth speed:40,50 or 80,100 meters/min
- High temperature heat source:Indirect heating:light diesel oil,middle-light diesel oil,heavy oil,natural gas,city coal gas,super-heated steam;direct heating;electricity.
- Temperature and steaming medium:Saturated steam:100℃;Super-heated steam of low temperature:100℃～105℃;Super-heated steam of high temperature:150℃～185℃ or above 185℃;Dry hot air:150℃～185℃ or above 185℃.
- Steaming time:According to cloth speed and cloth containing capacity:1.75～35 mins(cloth containing capacity:140 meters,cloth speed:4～40 meters/min);2.1～42mins(cloth containing capacity:210 meters,cloth speed:5～50 meters/min.
- Entry and exit mode:Entry and exit deivces are set on the fore-and-aft terminals or the same terminal of the machine;suit for single width,single layer,single width & double-layer,double-width & double-layer;Suit for woven fabrics and knitted fabrics;Dye absorption without sublimation and smear;Single width & double-layer and double-width & double-larer can take effect on condition that there are no lapels of woven fabrics and knitted fabrics.
- Drive mode:frequency conversion electric motor drive.
- Suit for the following fabrics:Aging steaming fixation and baking of natural fibres,synthetical fibres,chemical fibres and their blended woven fabrics,knitted fabrics and non-woven fabrics.Weight range of various fabrics:56～450g/m2
- Suitable dyes:direct dyes,reduction dyes,active dyes,dispersed dyes,acid groceries,metal complex dyes,dopes,salt dyes,and so on.
- Minimum steam pressure:3kg.
- condensate maximum allowable temperature:60℃.
